parallel bar set 4x4 Pairs 32/35/36/37x70x2.5mm

Product information "parallel bar set 4x4 Pairs 32/35/36/37x70x2.5mm"

TECHNICAL DATA VISE JAW PADS

parallel bar wide
2.5 mm

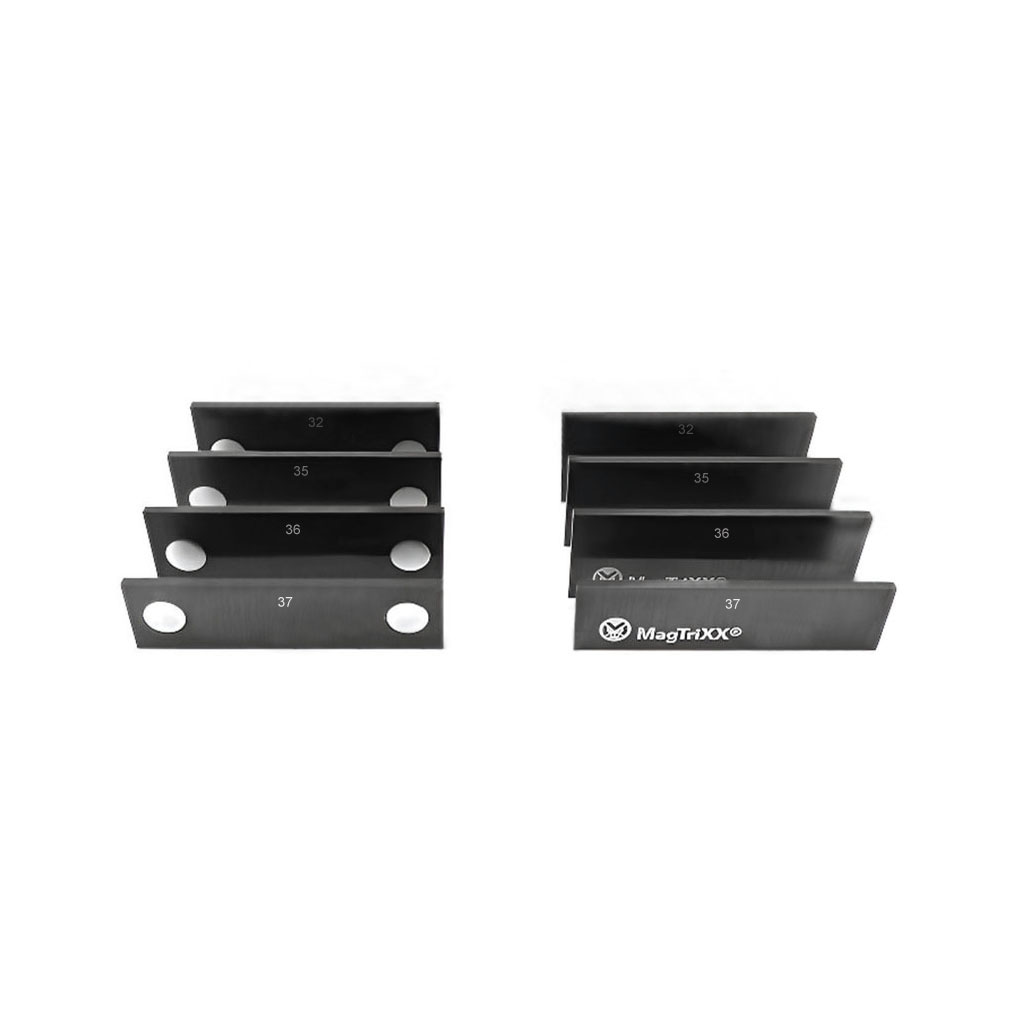

parallel bars
4x4 Pairs
parallel bar lenght
70 mm
parallel bar height
4 x 32/35/36/37 mm
height tolerance
+/- 0,01 mm
wide tolerance
+/-0,01 mm
material
hardened and distortion-free tool steel
coating
burnished
magnet typ
neodyn-magnet

FEATURES VISE JAW PADS

  • flexible and rational clamping
  • Reduces setup time by up to 10%
  • Locking without screws
  • Drilling close to the vice possible
  • Optimized single-sided magnetic adhesion
  • Couplable application for faceted parts
  • Precision ground as pairs
  • Magnets embossed instead of glued in

PRODUCT DESCRIPTION VISE JAW PADS

The high-quality vise jaw pads supports facilitate work and guarantee rational and flexible setup for maximum productivity. Designed for parallel holding of workpieces in vises and fixtures, their clever design reduces setup times by at least 10%.

The strong magnets on the inside make screwed or clamped connections superfluous and at the same time secure the area between the clamping jaws and the base against dirt and chip infestation for maximum precision. They are placed with a flick of the wrist and eliminate the need for tedious clamping and screwing.
The arrangement of the magnets and the magnetic adhesion is optimized. Since the outside of the parallel pads is hardly magnetic, in contrast to the inside, fewer chips are caught during machining here as well, which makes maintenance and cleaning much easier.

A prerequisite for trouble-free multi-sided and complete machining on machining centers is unobstructed access to the workpiece on as many sides as possible. Since the MagTriXX parallel shims are only 2.5 mm thick, they serve as a secure base but still allow maximum clearance under the workpiece for drilling even close to the clamping. The strong neodymium magnet ensures that the parallel pads do not slip during multi-sided machining on swivel tables. The parallel pad magnets are imprinted with a specially developed and patented process, so that loosening of the magnets is no longer possible.

Discover the power of precision with MagTriXX's high-quality magnetic parallels. Unparalleled quality for your CNC needs!

SCOPE OF DELIVERY VISE JAW PADS

product type
parallel bars
numbers
4x4 Pair
item number
VMA0010006
EAN / GTIN
9180013240066

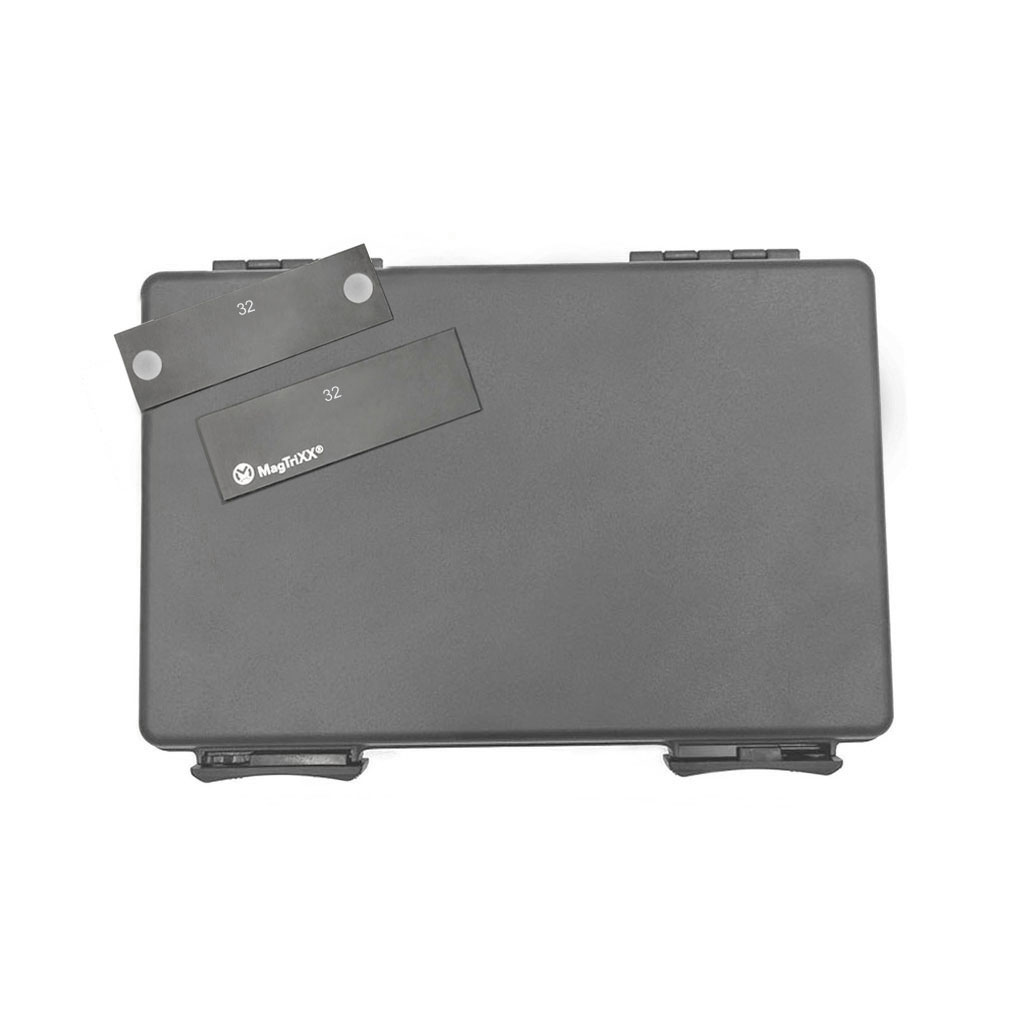

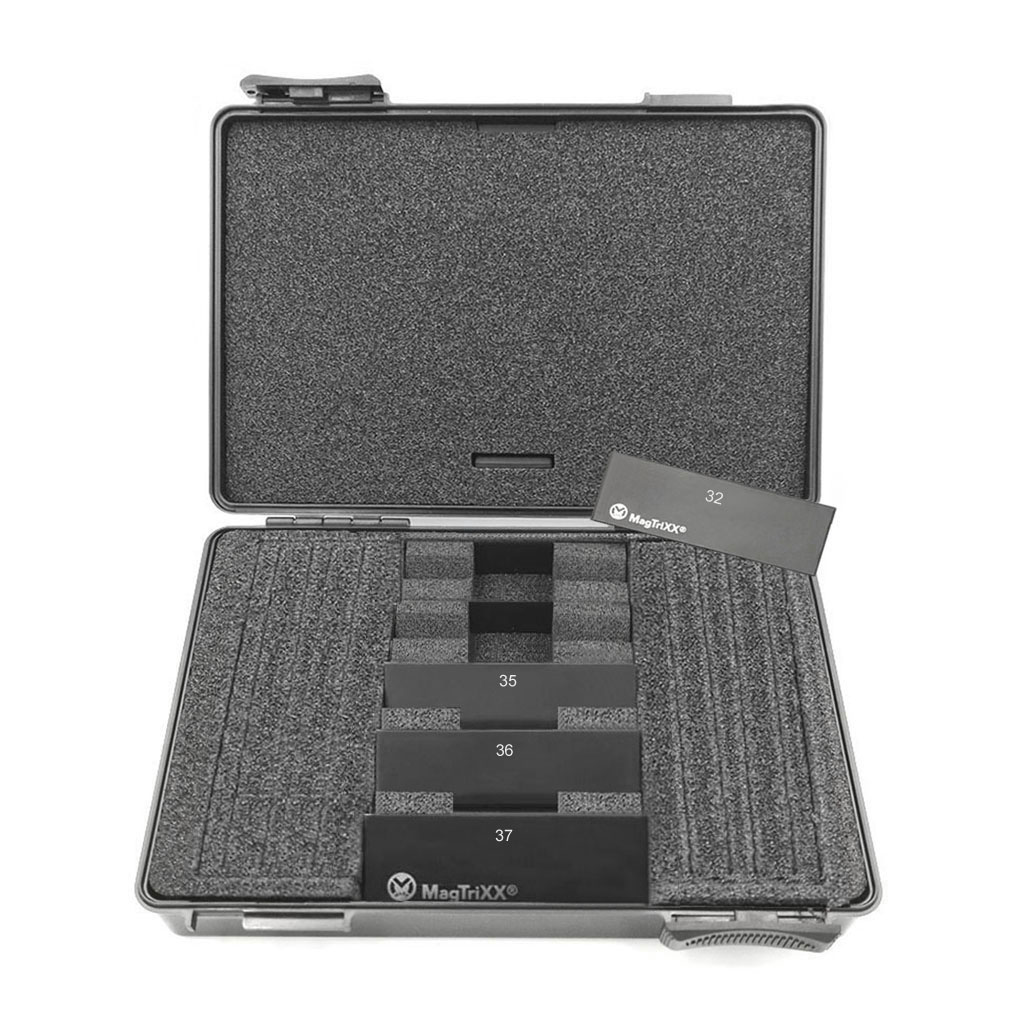

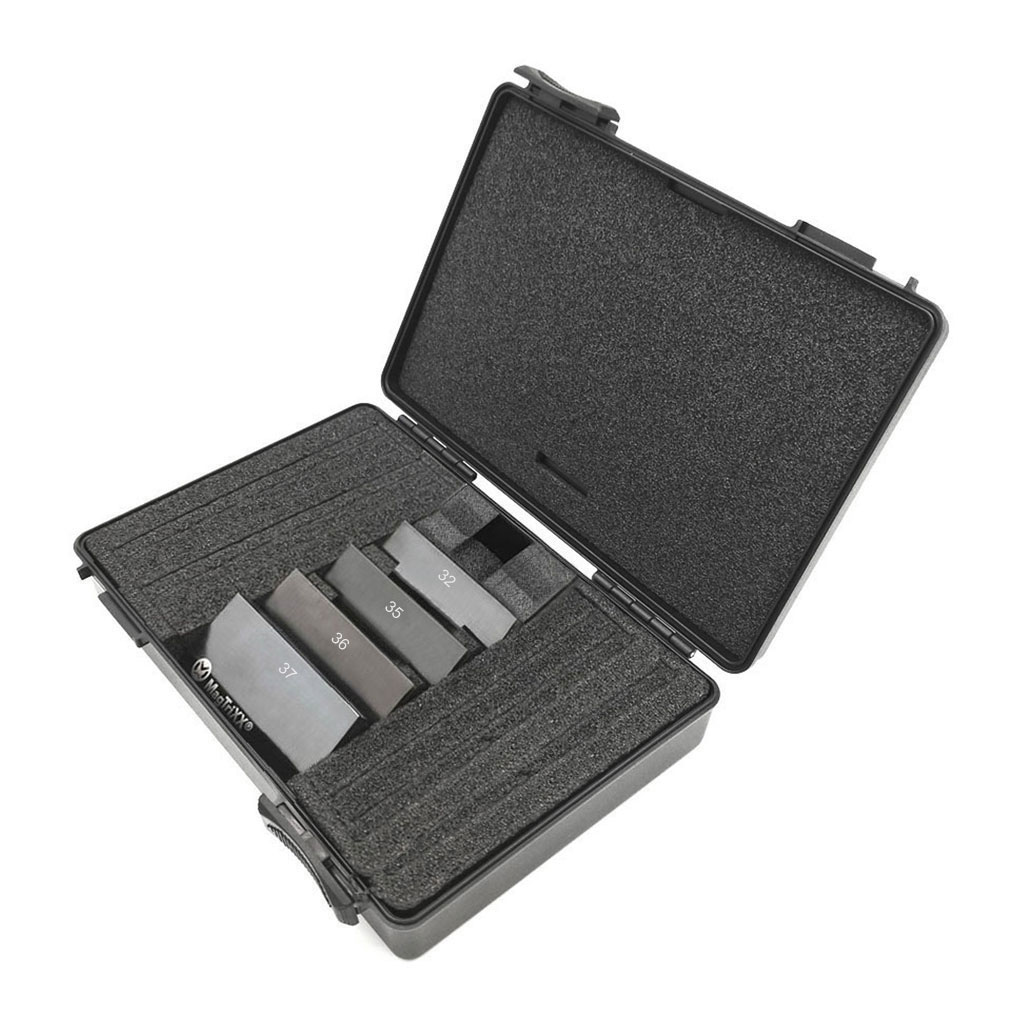

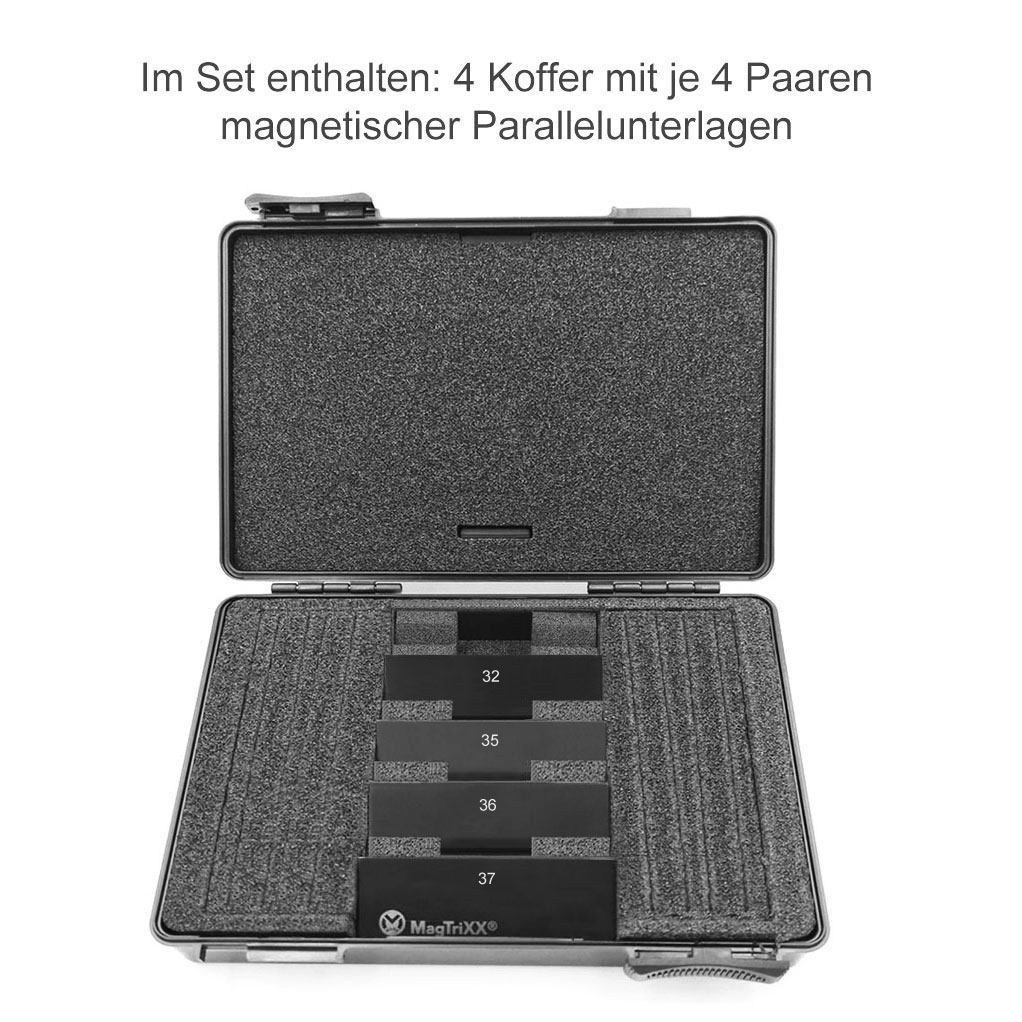

4x4 pairs of parallel bars
